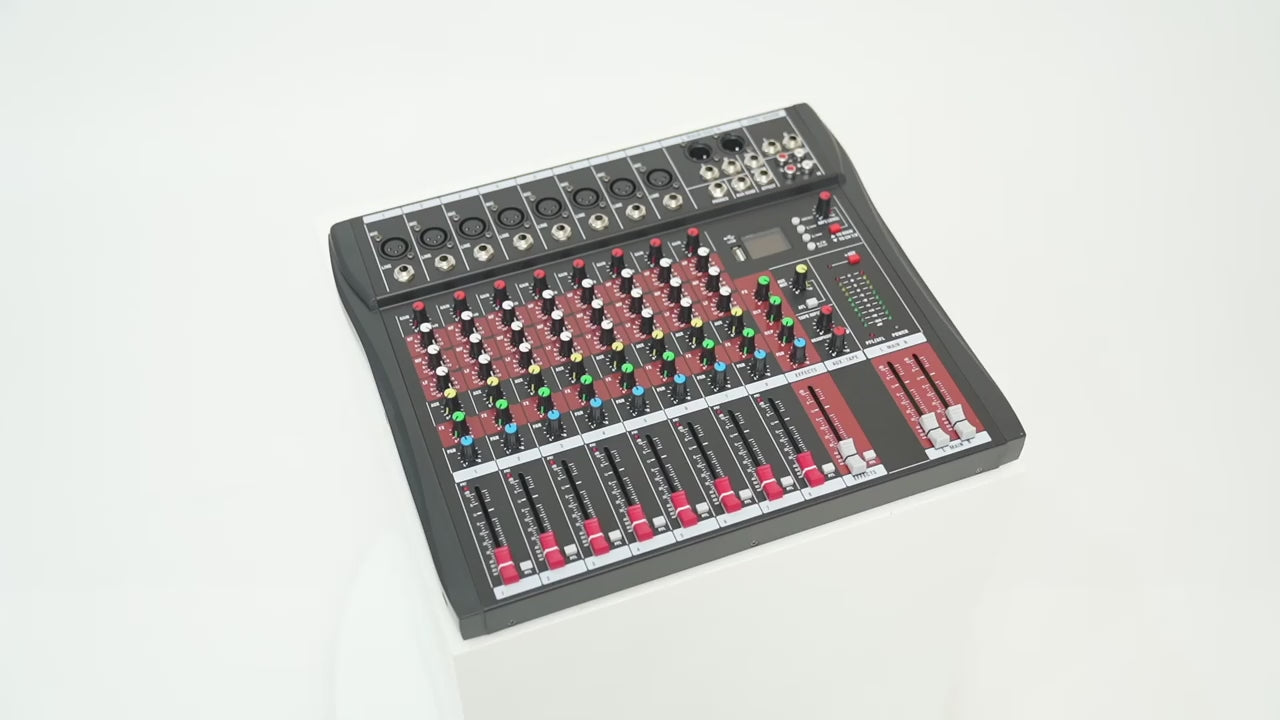

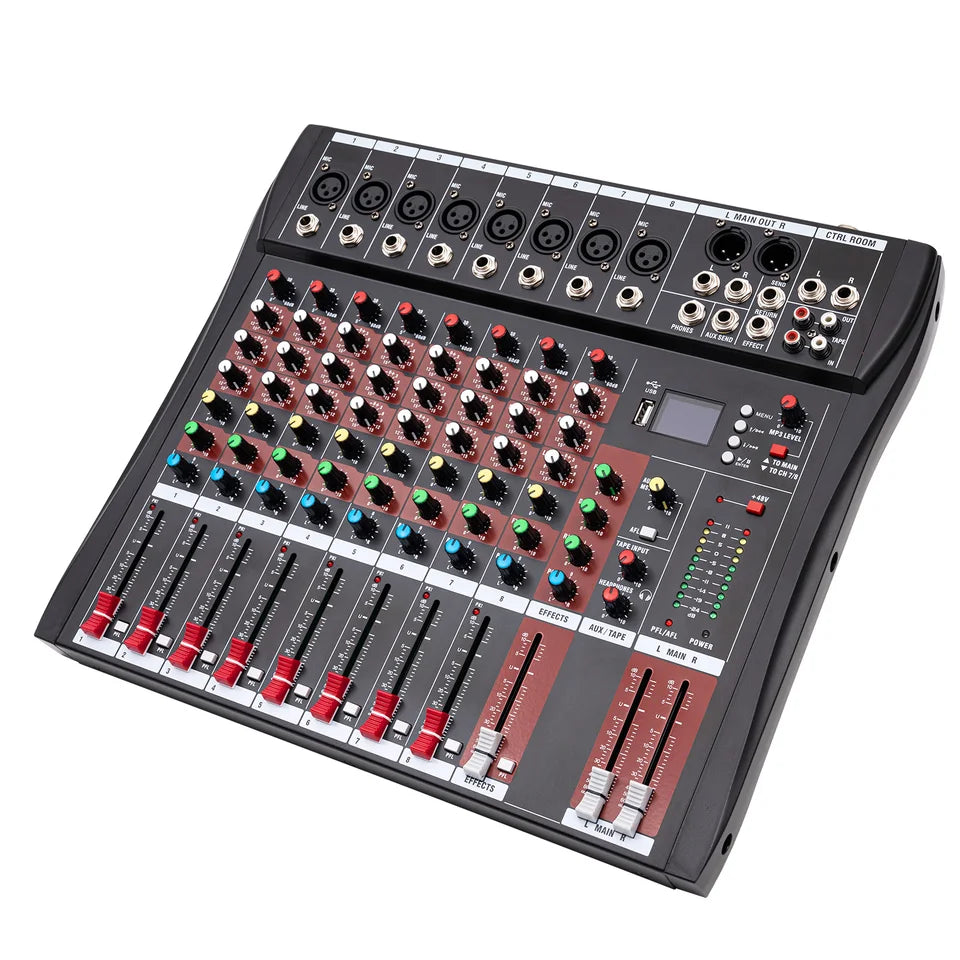

7/8-Channel Professioneller Mixer, Soundboard Konsole with Bluetooth USB PC Recording Input XLR Microphone Jack

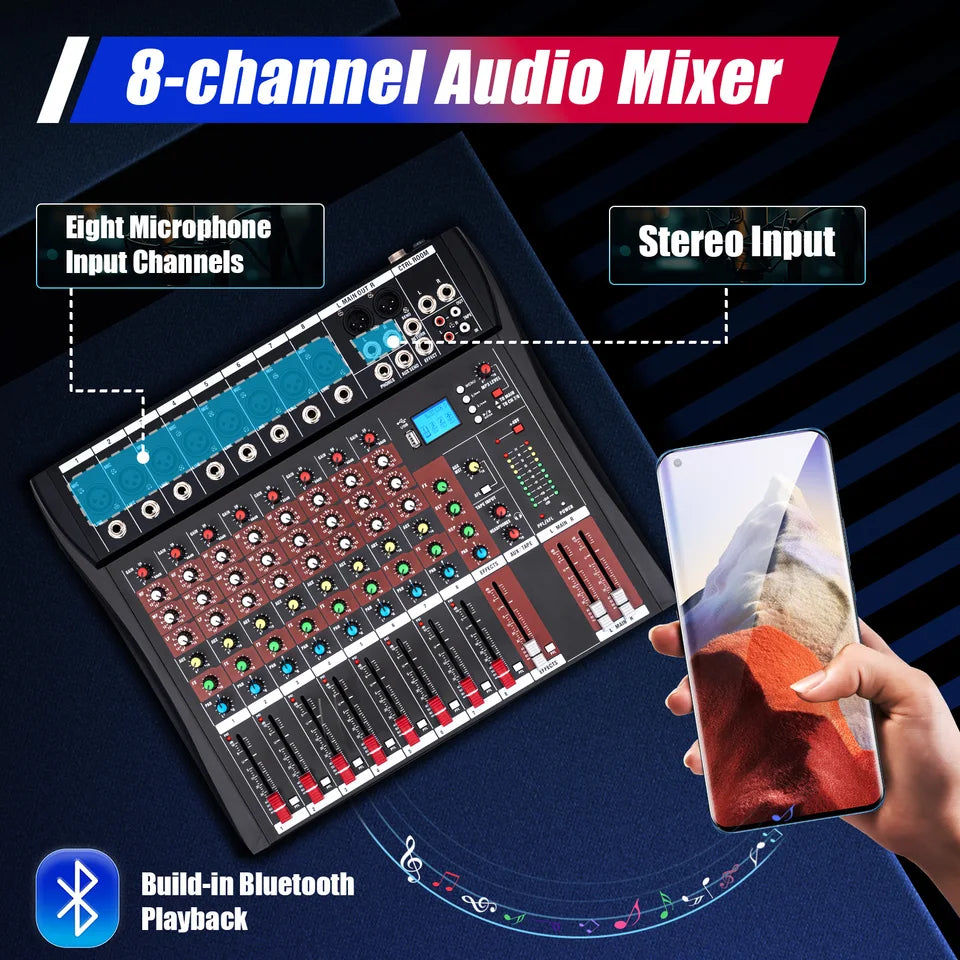

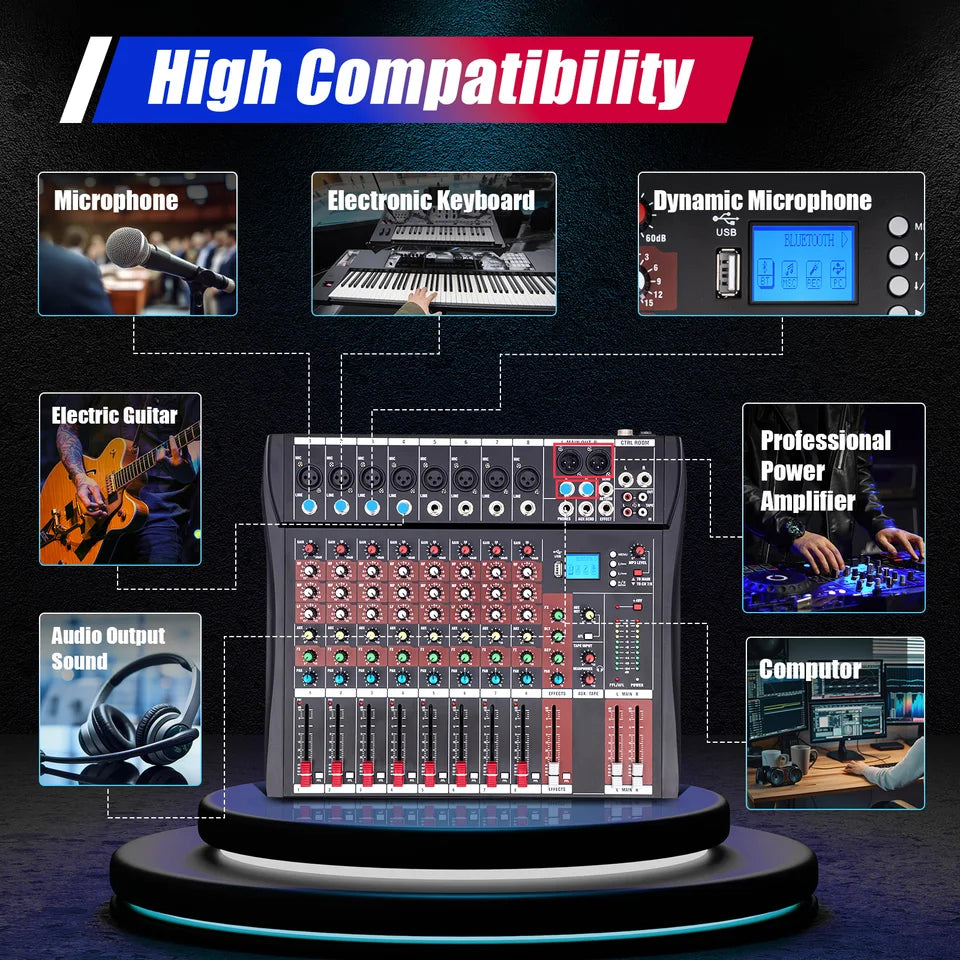

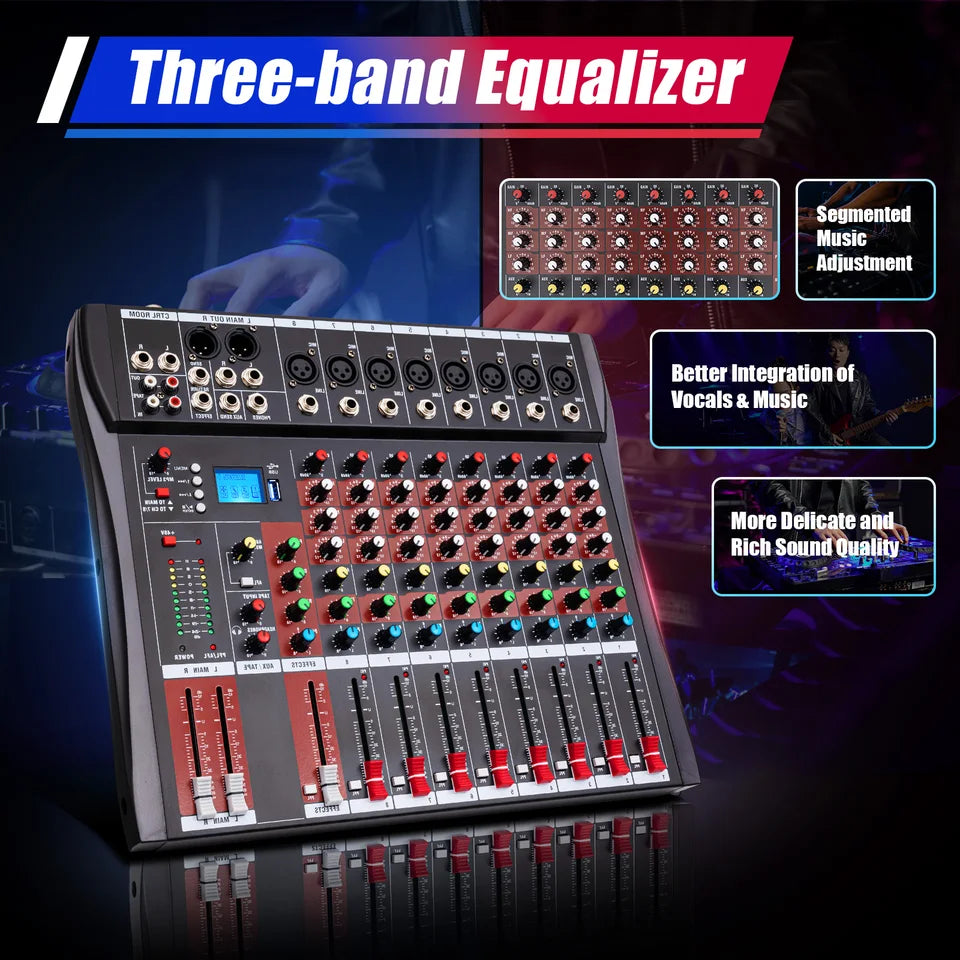

When inspiration strikes you, you can immediately turn on this audio mixer to keep it. It is equipped with a three-band equalizer for the main channel, so you can independently control the high / medium/low voice. It is very suitable for the connection of multiple devices, as it has 7/8 channels. With its built-in Bluetooth module and wireless range within 15 feet, it is compatible with TVs, desktop computers, laptops, cell phones, tablets and MP3 devices. It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studios, etc.

Details

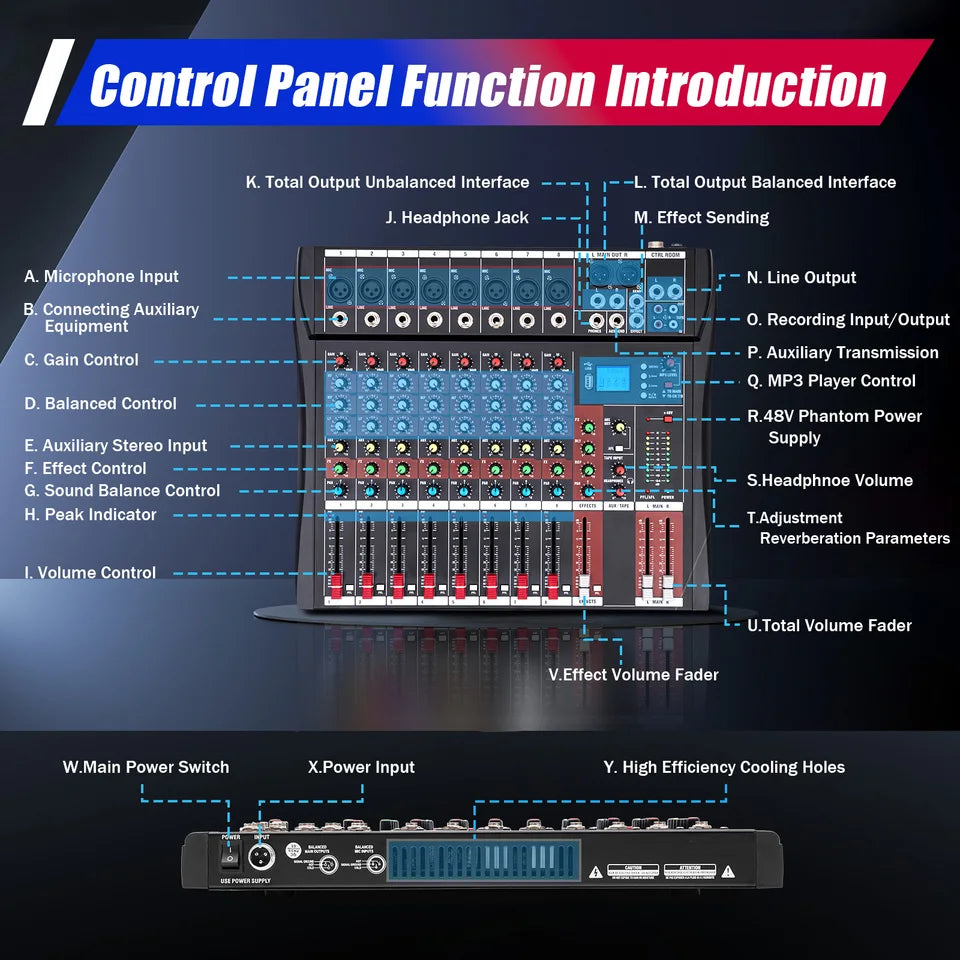

Indicators: The left and right channels each have a 10-segment level peak indicator, allowing you to grasp the signal condition in real-time and accurately adjust to avoid overload on the amplifier and speakers caused by adverse effects. USB Slot: The USB slot lets it connect to portable audio devices like USB drives or MP3s, so you can tune in anywhere, anytime! LCD Display: There is an LCD screen on this product that displays system functions in real-time so you can easily adjust them. Strip Heat Sink: The product comes with a strip heat sink on top to extend the life of the product. Single-touch Power Switch: The product is equipped with a one-touch power switch, which is very convenient to turn on/off the power with just one touch. Smooth Fader: The fader is made of selected high-quality damping material, smooth and easy to push and the concave convex design is for slip resistance.

8-Channel EU Specification

Material: ABS Color: Black Number of Channels: 8 Plug: EU Standard Power Source: Corded Electric Connection Technology: USB, Bluetooth  Input: AC 230V 50HZ 18W Output: AC18V*2 350mA Maximum Input Level of the Microphone: + 24dBu Maximum Input Level of the Line: + 24dBu Maximum Output Level: XLR Card + 26dBu Main Level Meter: 10-segment LED, -24 dB to CLIP Frequency Response: 20Hz-30Khz ± 0.5dB Maximum Input Power: 18W Total Chopping Distortion (RHD + N): <0.01%. Crosstalk (1 kHz): Fader off> 85 dB Channel> 82 dB Noise (22Hz-22KHz): Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu Mono / Stereo Channel EQ: High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V 2-track Return: RCA-seat, Unbalanced, 4K ohms, -2dBu 2-track Gear: RCA-seat, Unbalanced, <75 Ohm, -2dBu L / R Output: XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu FX / AUX Output: TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu Headphone: TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms Bluetooth Wireless Control Range: Max 4.6m/15ft  Package Size: 41*35*5cm/16*13.4*2in Product Size: 40*3.7*34cm/15.7*1.4*13.4in Gross Weight: 4.6kg/10lbs Net Weight: 4.4kg/9.7lbs

8-Channel US Specification

Color: Black Material: Metal, Damping Display: LED Process: Powder Coating Number of Channels: 8 Plug: US Standard Max Input Level: +24dBu(MIC/Line) Max Output Level: +26dBu(XLR) Master Meters: 10 Segment -24dB to CLIP Frequency Response: 20Hz to 30KHz 0.5dB Max Input Power: 15W THD+N: ＜0.01%(Channel Input to Mix Output) Crosstalk at 1kHz: ＞85dB(Fader/Mute Shut Off); ＞82dB(Inter Channel) Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu 2-track Return: RCA, Unbalanced, 4K ohm, -2dBu 2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu L/R Output: XLR Unbalanced, Pin 2 Hot, ＜75 ohm, +4dBu, Max.+22dBu FX/AUX Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended Mono Channel: XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -40 to +14dBu TRS Balanced, Tip Hot, 10K ohm, Sensitivity -20 to +14dBu XLR, Phantom +48V Adaptor: Model: LWV, 16PS Input: AC 110V 50Hz, 18W Output: AC 18Vx2, 350mA Slide Length: 7cm/2.76inch Gross Weight: 4.65kg/10.25lbs Net Weight: 4kg/8.82lbs Package Size: 44.5*42*11cm/17.52*16.54*4.33inch Product Size: 40*34*5cm/15.75*13.39*1.97inch

Package Included

1*8-Channel Audio Mixer 1*Power Adapter 1*English Manual

7-Channel EU Specification

Material: Iron Color: Black Style: Modern Shape: Rectangle Process: Spraying Plug Type: EU Standard Music Modes: Nature, Pop, Rock, Jazz, Classical, Country Model: LWV 16PS Input: AC 230V 50Hz Input Power: 18W Output: AC 18V × 2 350mA Maximum Mic Input Level: +24dBu Maximum Line Input Level: +24dBu Maximum Output Level: +26dBu Main Level Meter: 5-segment Light-emitting Diode Frequency Response: 20Hz-20kHz±0.5dB Common Mode Rejection Ratio (MIC 1kHz): >75dB Total Attainment Distortion (THD+N): ＜0.01% (Channel Input to Mix Output) Crosstalk (1kHz): >85dB Noise (22Hz-22kHz): Equivalent Input Noise -116dBu, Residual Output Noise <-80dBu Mono/Stereo Channel EQ: High, Broom, +/-15dB, 12Khz Low, Broom, +/-15dB, 80Khz Mid, Peak-to-Valley, +/-15dB, 2.5Khz Mono: XLR Balanced, 2-pin Hot End, 2Kohm Sensitivity -60 to +14dBu TRS Balanced, Tip Hot End, 10Kohm Sensitivity -40 to +14dBu XLR Phantom Power +48V Stereo: TRS Unbalanced, Hot Tip End, 10Kohm, Sensitivity -40 to +14dBu L/R Outputs: TRS, Unbalanced, Hot Tip, <75ohm, -2dBu, +18dBu Max. FX/AUX Output: TRS, Unbalanced, Hot Tip, <75ohm, -2dBu,+18dBu Max. Headphone Type: TRS, Tip L, Recommended for 30-600ohm Headphones Number of Channels: 7 Bluetooth Connection Range: Within 10m/32.8ft Fader Slider Length: 70mm/2.8in Product Size: 33.5*23*4cm/13.2*9*1.6in Package Size: 38.5*31*10cm/15.2*12.2*3.9in Net Weight: 2.5kg/5.5lbs Gross Weight: 3kg/6.6lbs

7-Channel US Specification

Color: Black Style: Minimalist Material: Iron Number of Channels: 7 Connectivity Technology: Interface, USB, Bluetooth Plug Voltage: U.S. Plug 110V Microphone Maximum Input Level: +24dBu Maximum Line Input Level: +24dBu Maximum Output Level: +26dBu Main Level Meter: 5-segment Light-emitting Diode Frequency Response: 20Hz - 20kHz ± 0.5dB Common Mode Rejection Ratio (MIC 1KHz): >75dB Total At-wave Distortion (THD+N): <0.01% (Channel Input to Mix Output) Crosstalk (1kHz): >85dB Noise (22Hz - 22KHz): Equivalent Input Noise -116dBu Residual Output Noise <-80dBu Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB,12KHz  Low frequency, Broom Type, +/-15dB,80KHz High/Midrange, Peak/Valley Type, +/-15dB,2.5KHz Mono: XLR Balanced, 2-pin Hot end, 2Kohm Sensitivity -60 to +14dBu TRS Balanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu  XLR Phantom Power +48V Stereo: TRS Unbalanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu L/R Output: TRS, Unbalanced, Tip Hot End, <75ohm, -2dBu, +18dBu Max FX/AUX Output: TRS, Unbalanced, Tip Hot End, <75ohm,-2dBu,+18dBu Max Headphones. TRS, tip L, Recommended for Headphones from 30 to 600ohm Product Size: 33*23*3.7cm/ 12.99*9.05*1.46in Package Size: 38*8*30cm/ 14.96*3.15*11.81in Net Weight: 2.58kg/ 5.69lbs Gross Weight: 2.85kg/ 6.28lbs

Package Included

1* 7 Channel Mixer 1* Adaptor 1* English User's Manual
